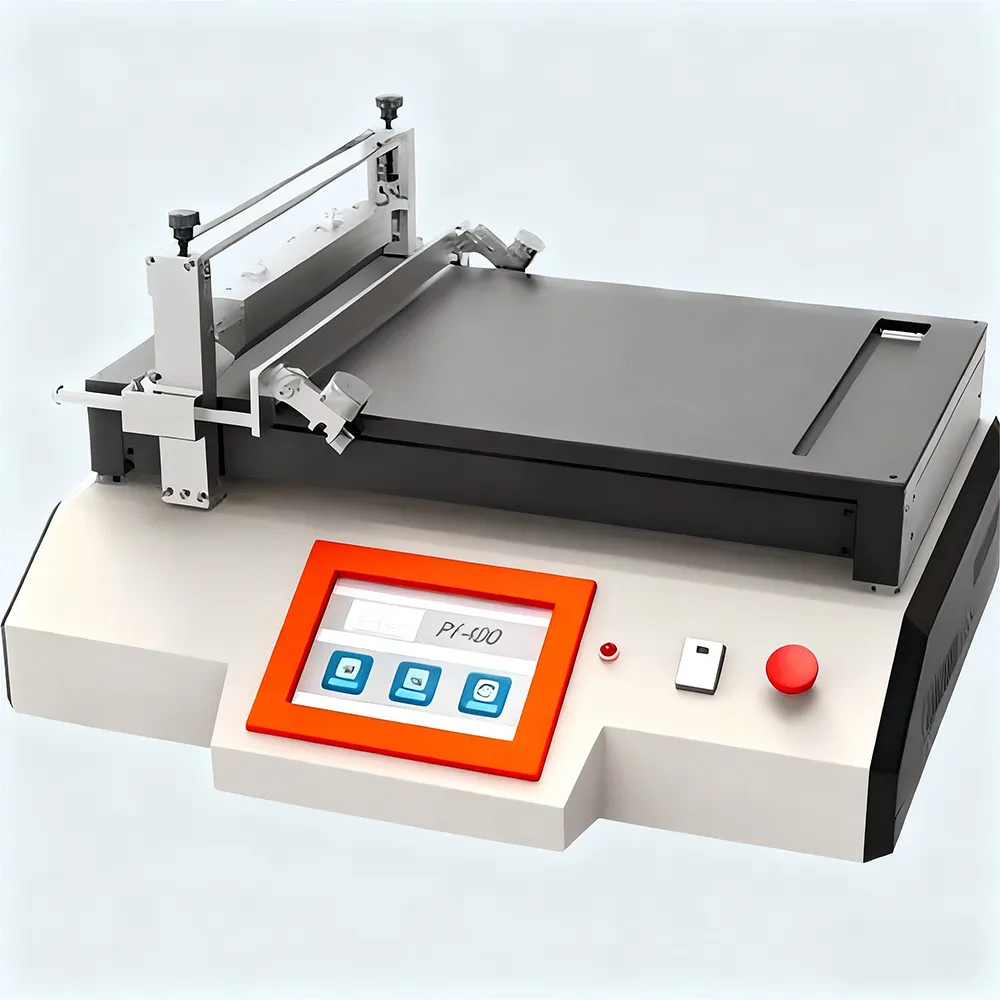

Standard film coating machine PF400

1. Product Features :

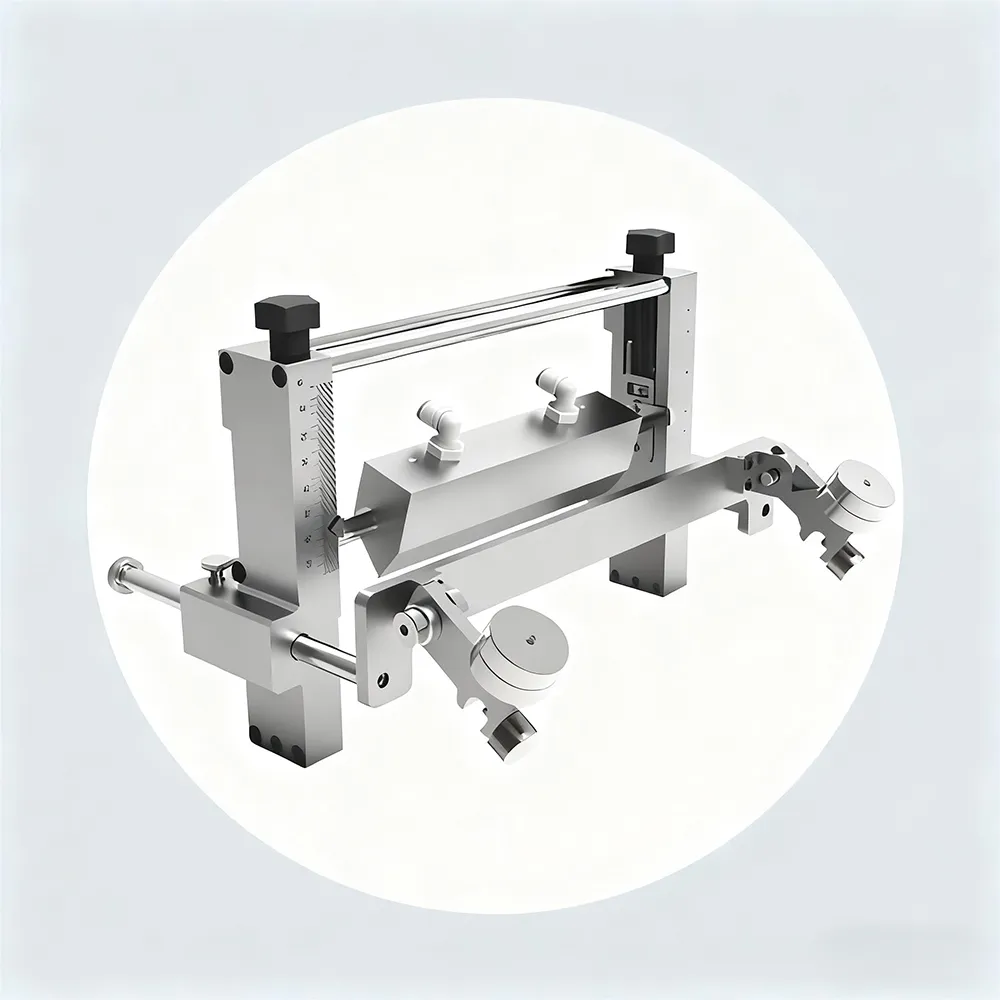

1. Equipped with adjustable coating scraper or standard wire rod operation ;

2.7-inch full-color touch screen control, user-friendly interface, easy to operate ;

3. Hard anodized aluminum substrate, smooth surface, with vacuum adsorption function ;

2. Product parameters :

1. Coating speed: 1-300mm/s ;

2. Speed regulation accuracy: 1mm/s ;

3. Maximum stroke length: 420mm ;

4. Vacuum panel size: 540mm*345mm ;

5. Vacuum adsorption area: A4/A3 area optional ;

6. Heating power: 2.75KW ;

7. Vacuum input requirements: 0.06-0.09Mpa ;

8. Vacuum interface: The outer diameter of the outlet on the back panel of the equipment is 6mm .
