1. Product Features :

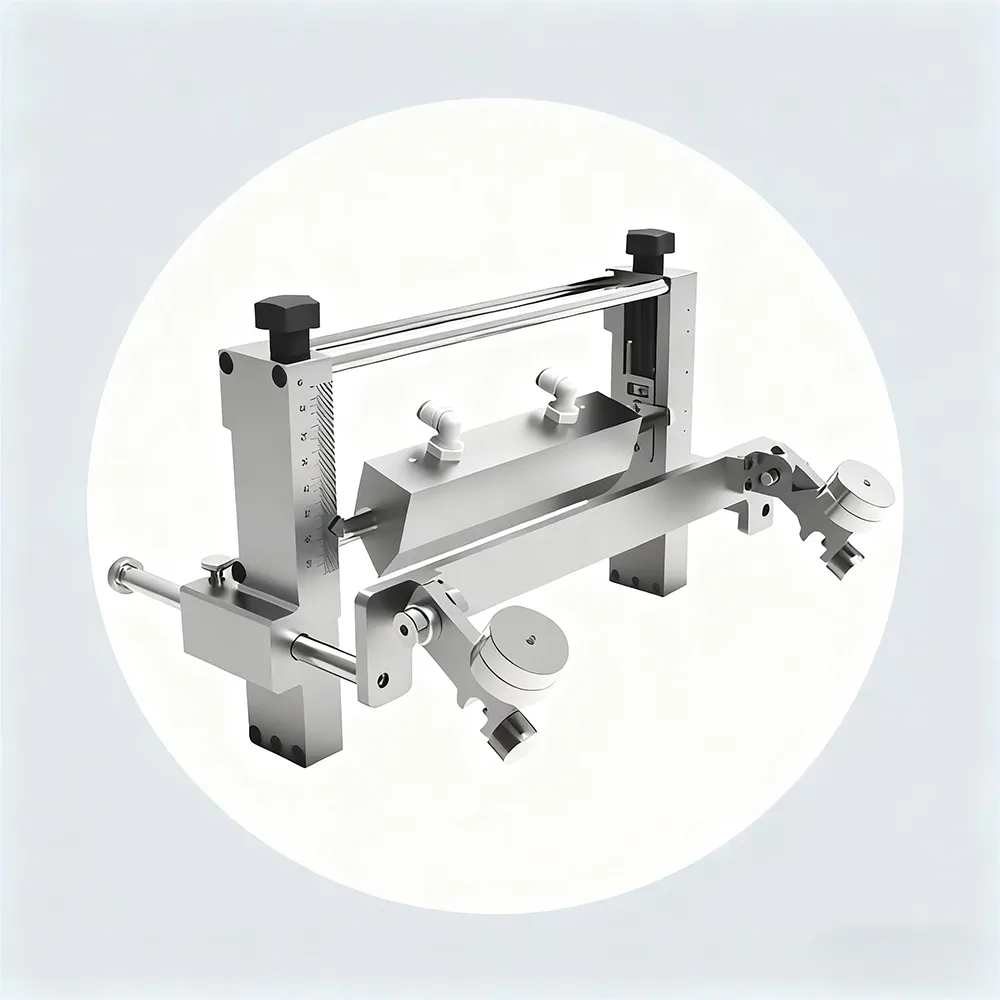

1. Equipped with adjustable coating scraper or standard wire rod operation ;

2.7-inch full-color touch screen control, user-friendly interface, easy to operate ;

3. Hard anodized aluminum substrate, smooth surface, with vacuum adsorption function ;

4. The panel has heating function, precise temperature control, linear temperature rise control and good thermal uniformity .

2. Product parameters :

1. Coating speed: 1-300mm/s ;

2. Speed regulation accuracy: 1mm/s ;

3. Maximum stroke length: 420mm ;

4. Vacuum panel size: 540mm*345mm ;

5. Vacuum adsorption area: A4/A3 area optional ;

6. Power supply: 2.75KW ;

7. Thermal uniformity: ≤±4% ;

8. Heating temperature: room temperature - 200 ℃ ;

9. Temperature control accuracy: ±0.5℃ ;

10. Vacuum interface: The outer diameter of the outlet on the back panel of the equipment is 6mm ;

11. Vacuum input requirements: 0.06-0.09Mpa ;

12.Weight: 37Kg .
