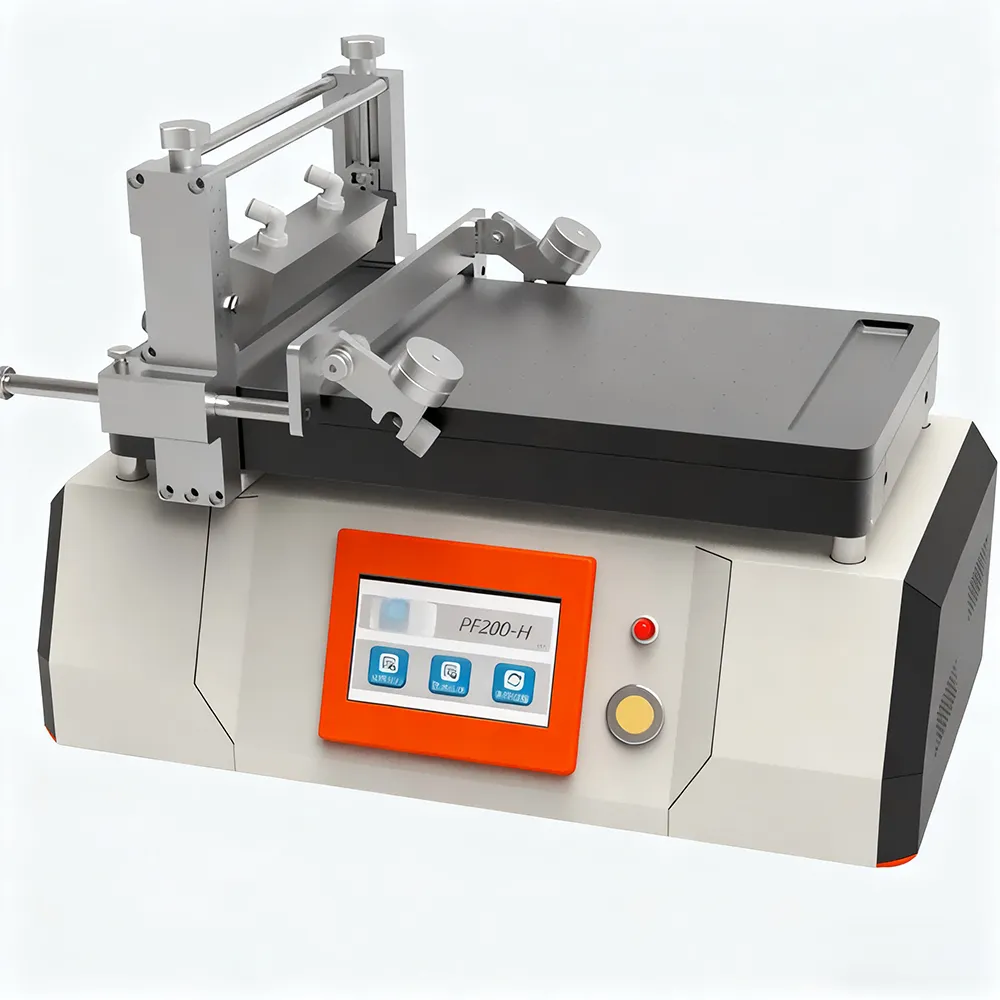

Perovskite coating machine PF200-H

1. Product Features :

1. Accurately control the moving rate to improve coating repeatability ;

2. The wind knife can adjust the air outlet angle, -45°-45° adjustable ;

3. The equipment is equipped with adjustable coating scraper, four-sided coater and wire rod ;

4.4.3-inch full-color touch screen digital interface control system, easy to operate and portable ;

5.Hard anodized aluminum mirror polished panel with vacuum adsorption function ;

6. The height of the air knife from the substrate is adjustable, and the vertical adjustment range of the air knife is 10-35mm .

2. Product parameters :

1. Coating speed: 1-50mm/s ;

2. Speed regulation accuracy: 1mm/s ;

3. Stroke length: 250mm ;

4. Vacuum panel size: 380mm*210mm ;

5. Vacuum adsorption area: A4 ;

6. Heating temperature: room temperature - 200 ℃ ;

7. Heating rate is controllable: 1-10℃/min ;

8. Thermal uniformity: ≤±2% ;

9. Power input: AC200V-240V, single phase, 50Hz, 2.0KW ;

10. Vacuum input requirements: 0.06-0.09Mpa, minimum vacuum flow rate of 15L/Min or more ;

11. Program setting: 100 sets of 5-step programs ;

12. Vacuum interface: The outer diameter of the outlet on the back panel of the equipment is 6mm .
