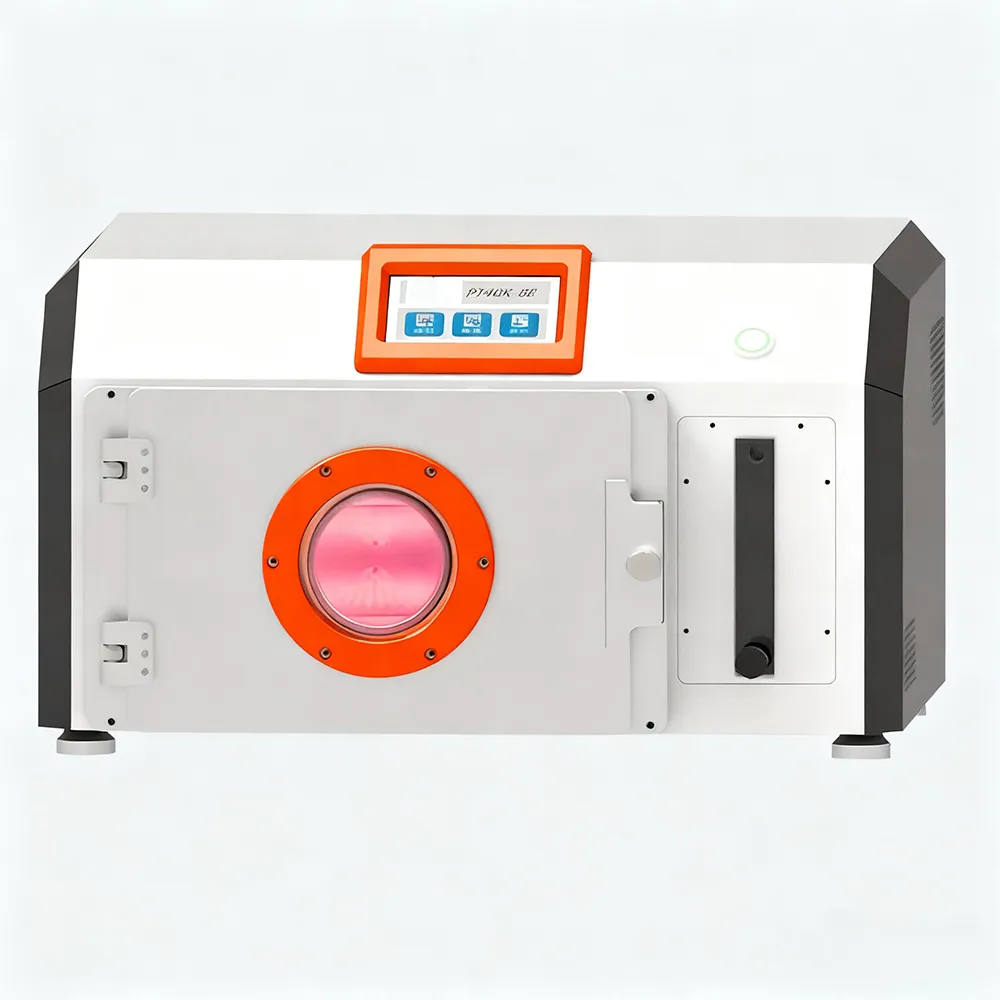

Plasma cleaning machine PT40K-BE

1. Product Features :

1. Suitable for substrates below 8 inches, with wide applicability ;

2. Efficient cleaning, quickly achieving the required surface hydrophilicity ;

3. Widely used, no damage to the treated products, and no change in material properties ;

4. No environmental pollution, no chemical consumption, and the machine itself does not produce pollutants .

2. Product parameters :

1. RF power supply: 40KHz ;

2. RF power: 0-500W (maximum 1000W) ;

3. Matcher: automatic matching ;

4. Gas control: single float flowmeter ;

5. Cabin size: 226mm*126mm*224mm ;

6. Cabin material: aluminum alloy ;

7. Cabin volume: 6.4L ;

8. Effective processing size: L200×W200 ;

9. Time setting: 300 seconds ;

10. Vacuum pump: pumping speed 4m³/h ;

11. Gas stabilization time: 30 seconds ;

12. Vacuum degree: <10pa .
