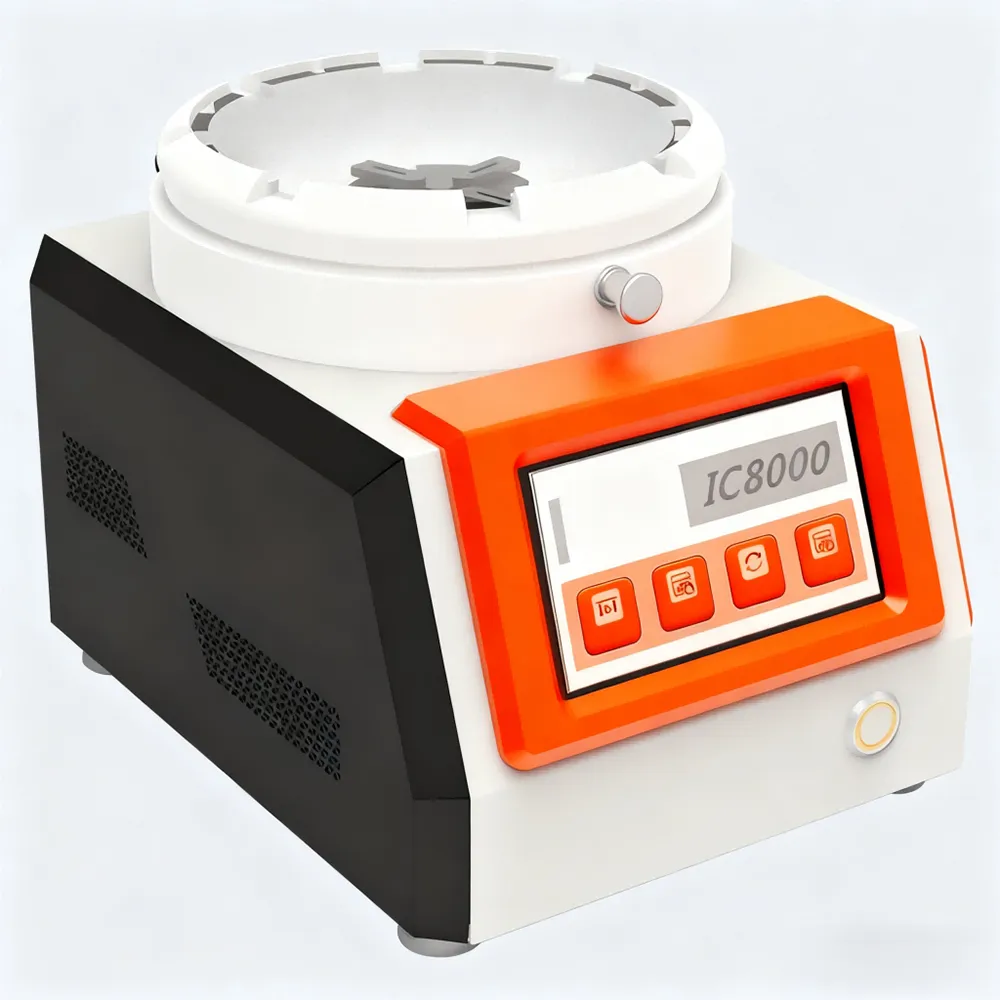

Temperature Control Spinning Machine IC8000-S

1. Product Features :

1. Applicable substrate size: 10-35mm ;

2. HDPE polymer inner cavity, PC transparent cover, sheet metal outer shell ;

3. Safe voltage heating components ensure safe and reliable operation ;

4. The new loading plate can control temperature, heat and spread glue at the same time ;

5. Can be upgraded to add one-way precise measurement and automatic dispensing function ;

6. Reliable thermal insulation design ensures the safety of equipment motors and components .

2. Product parameters :

1. Turntable heating temperature control range: room temperature - 200 ℃ ;

2. Temperature resolution: 0.1°C ;

3. Temperature control accuracy: <±0.5℃ (temperature control accuracy after stabilization) ;

4. Turntable temperature uniformity: <±2% ;

5. Speed range: 100-8000rpm ;

6. Speed resolution: ±1rpm ;

7. Acceleration adjustable range: 100-5000rpm/s ;

8. Maximum single-step spin coating time: 3000s ;

9. Time resolution: 0.1s ;

10. Up to 100 groups of 100-step programs can be programmed, and more can be expanded ;

11. The standard adjustable jaw loading tray can accommodate 10-35mm wafers. Other specifications can be customized .
