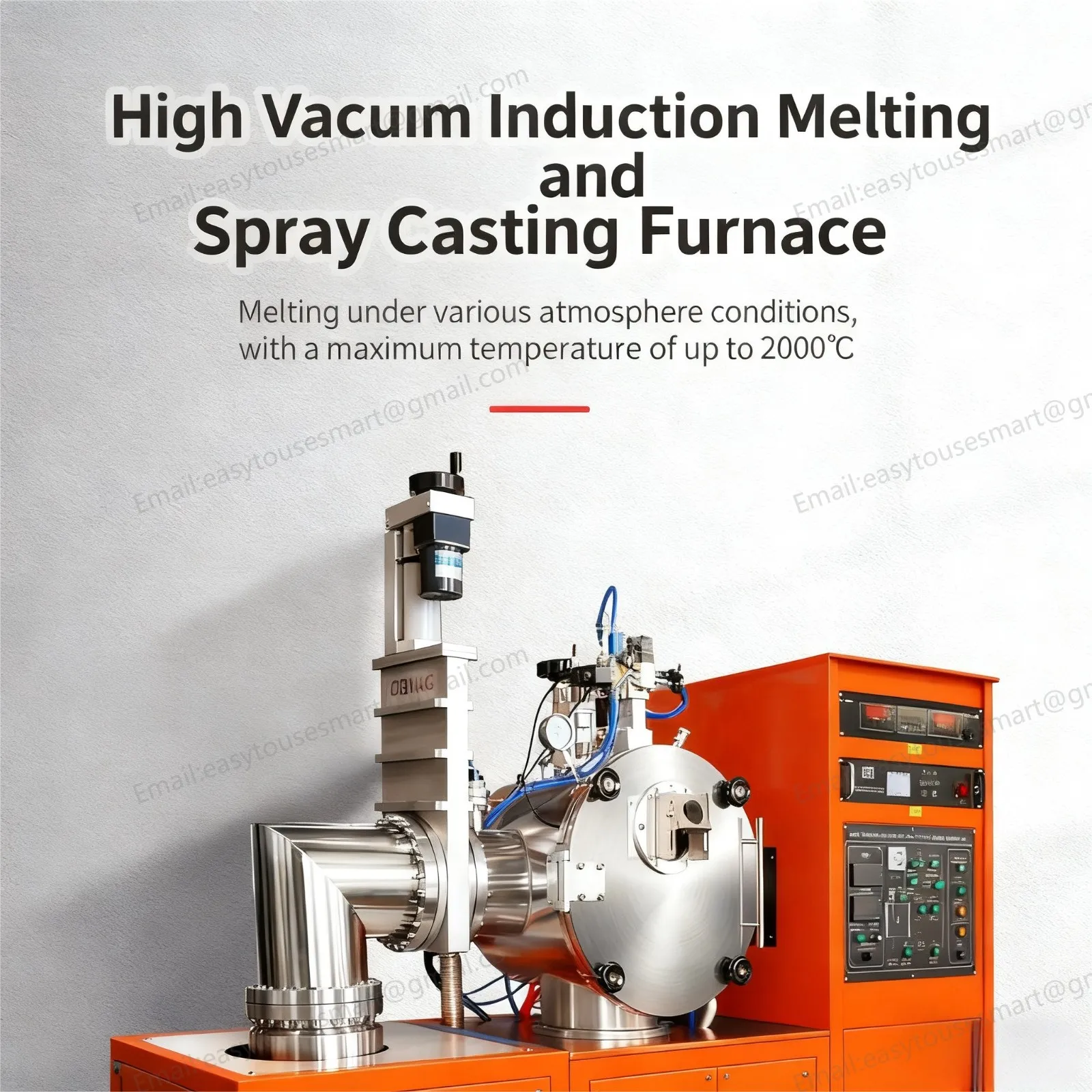

Vacuum Induction Melting & Dual-Mode Casting Equipment

Core AdvantagesDesigned for advanced material R&D, this integrated system breaks the limits of traditional furnaces by combining Vacuum Induction Melting (VIM), Gravity Tilt Pouring, and High-Pressure Gas Atomization (Rapid Solidification). Users can seamlessly switch modes on a single platform: perform standard precision mold casting or execute high-speed spray casting to produce amorphous and microcrystalline materials. It is an ideal solution for universities, research institutes, and high-end alloy development centers.

Dual-Mode Casting System

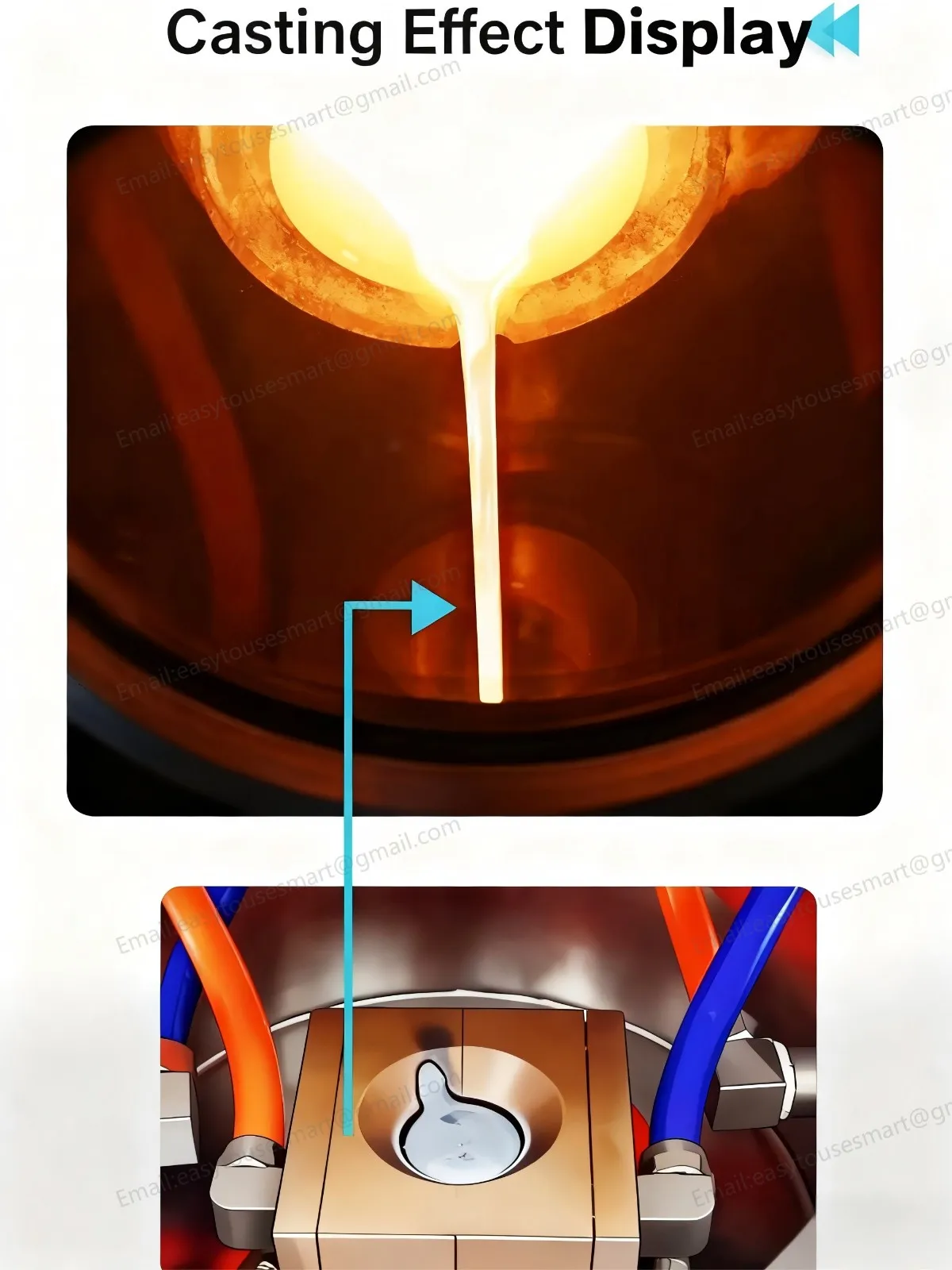

• Tilt Pouring Mode: Features a precision tilting mechanism to smoothly pour molten metal into graphite, ceramic, or water-cooled copper molds, perfect for complex castings or standard samples.

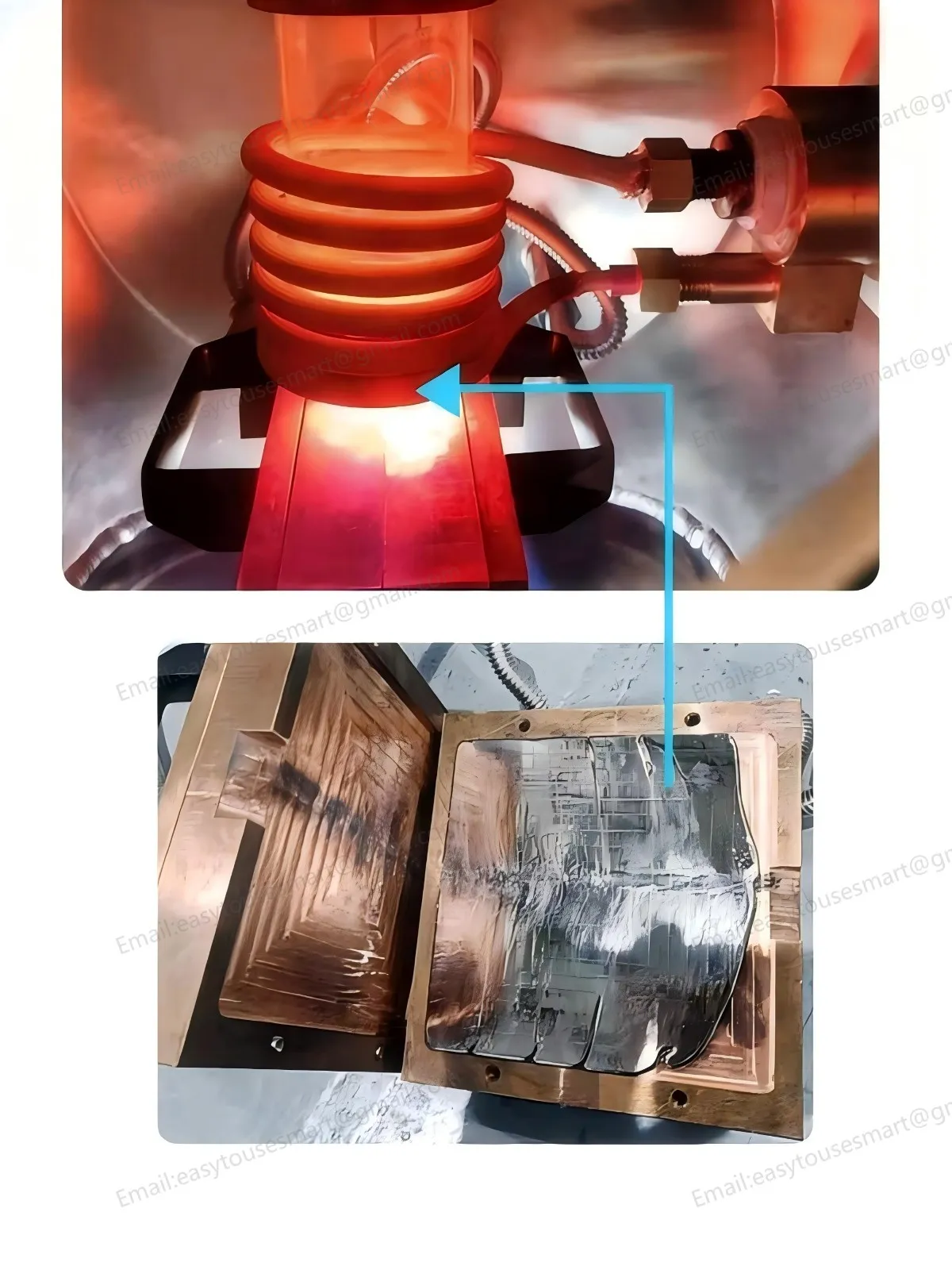

• High-Pressure Spray Mode: Integrates a high-pressure inert gas system to jet molten metal into a specialized water-cooled mold, achieving extremely high cooling rates essential for creating metallic glasses (amorphous alloys).

• All-in-One Efficiency: Both modes share the melting chamber and heating system, eliminating the need for reloading and significantly boosting R&D efficiency.

Key Features

• High-Frequency Induction Heating: Utilizes high-frequency power for high thermal efficiency, reaching temperatures ≥1600℃, with natural electromagnetic stirring for uniform composition.

• High Vacuum & Atmosphere Protection: Achieves a high vacuum level of ≤ 5×10⁻³ Pa to remove impurities; supports high-purity Argon/Nitrogen atmospheres, ideal for reactive metals.

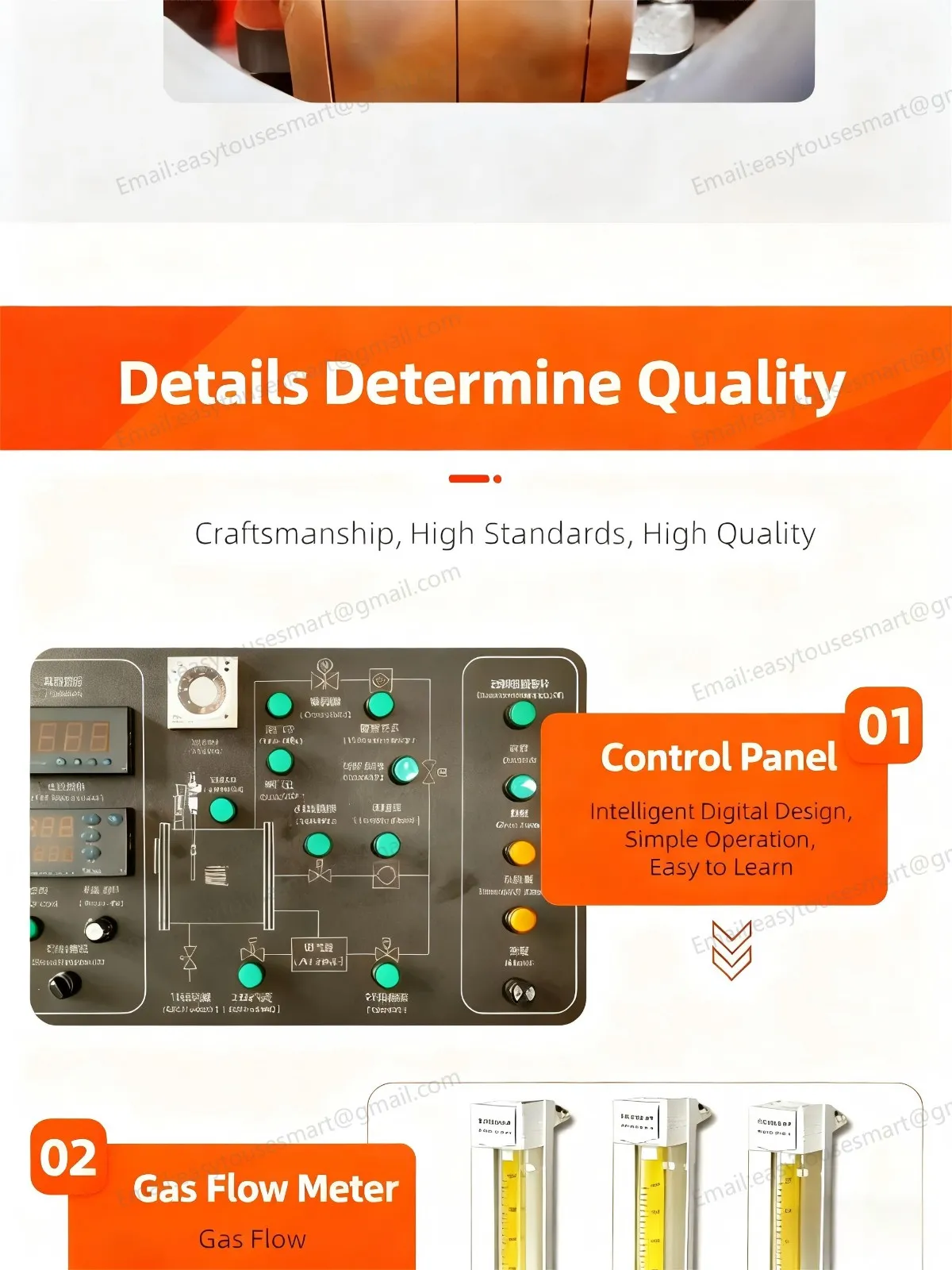

• Smart Control & Safety: Equipped with a PLC automatic control system and multiple safety interlocks (hydraulic, overheat, emergency stop) for precise and secure operation.

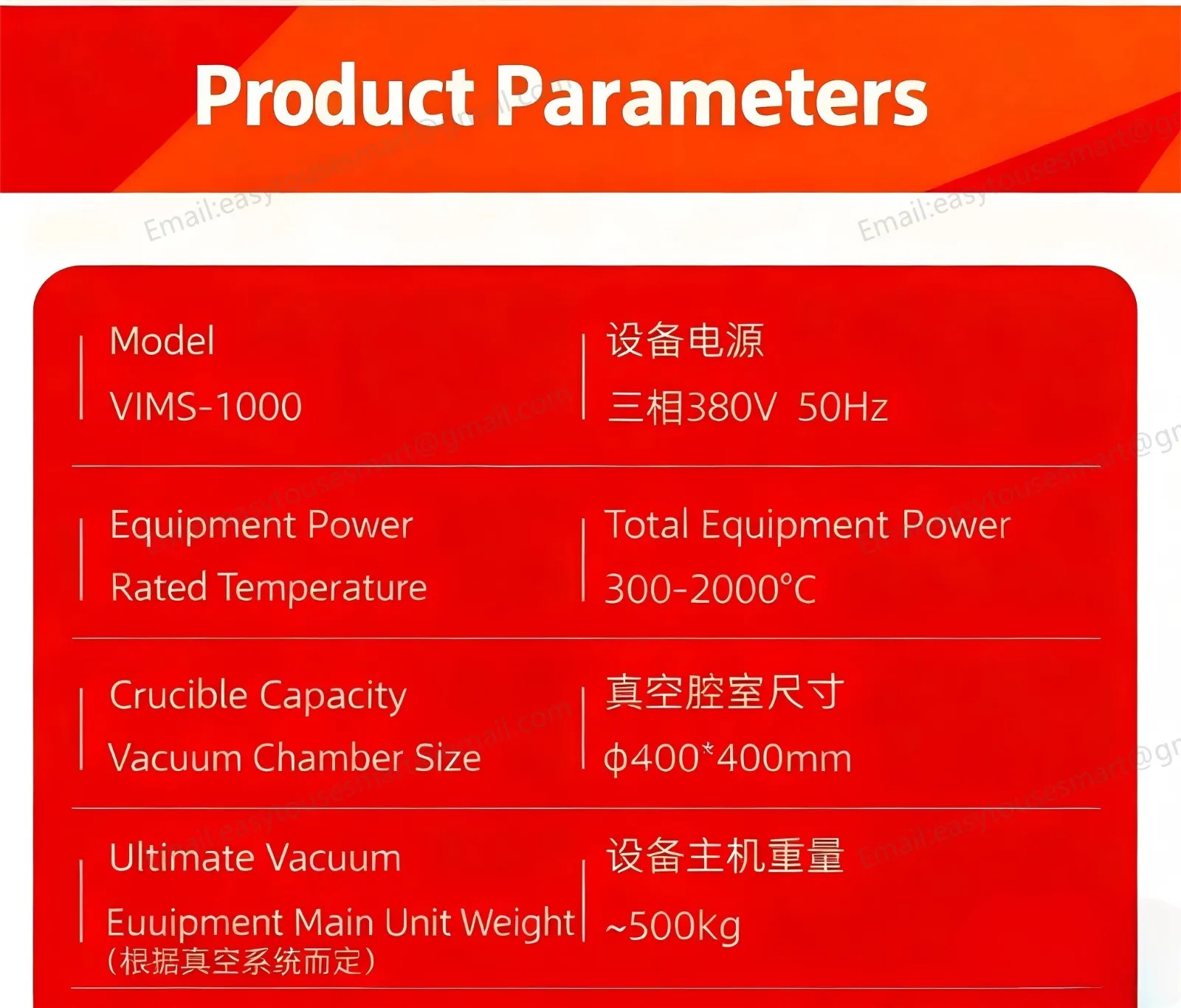

Technical Specifications

Typical Applications

• Amorphous & Microcrystalline Alloy Development: Preparation of Fe-based, Zr-based, and Cu-based amorphous alloys to evaluate Glass Forming Ability (GFA).

• Rapid Solidification Research: Studying microstructure differences between slow and fast cooling to analyze grain refinement and metastable phase formation.

• Precision Casting & Prototyping: Producing standard test bars for superalloys and special steels, or creating precision molds.

• New Material Screening: Rapidly verifying the casting performance of new alloy formulas and optimizing process parameters.
